Process Mapping Format

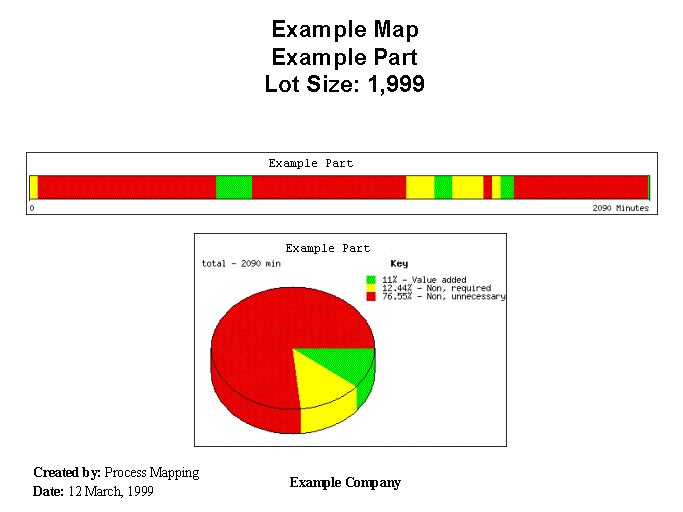

Here is the recommended process mapping hard copy format.  A template format can be downloaded if you have access to MS Word or Power Point.

Download Word Template (Windows 95 version)

Download Power Point Template (Windows 95 version)

A hard copy process mapping should include in following information:

1.  Company Name
2.  Part Number / Description
3.  Lot Size (if applicable)
4.  Process Map (Before and After if applicable)
5.  Date of creation
6.  Author of process map
7.  Customer Name
8.  Version # (if applicable)
9.  Breakdown percentage of each type of activity (Value, Required, Unnecessary)
